Product Center
Flat trailer group

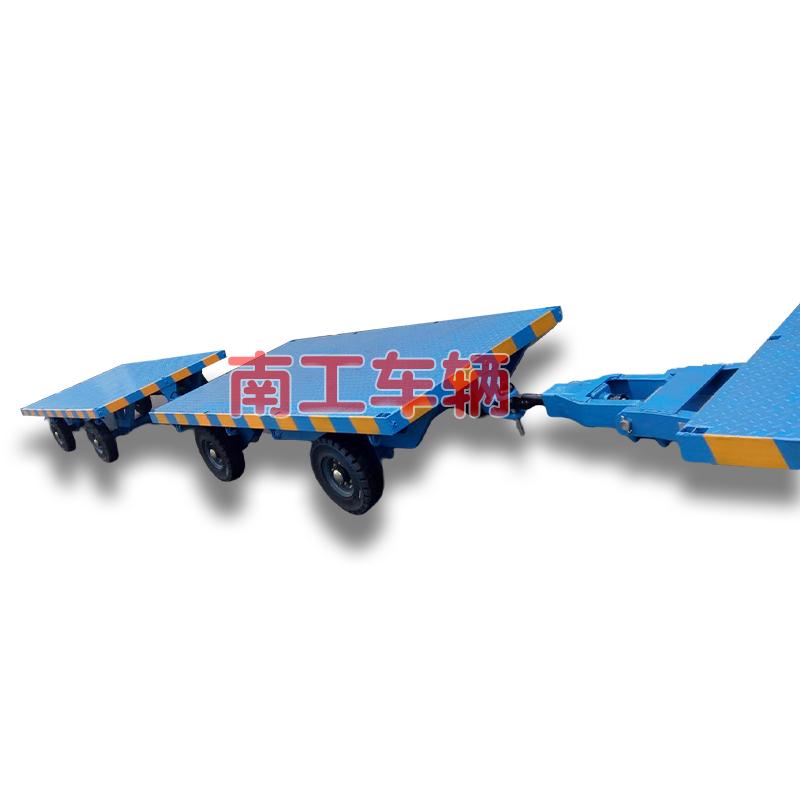

name:Flat trailer group

detailed information息

Brand: Nangong

Model: NGTT03F-12/26-4S

Load: 3T

Panel size: 2.6 * 1.25 m

Color: Dongfeng Blue

Net weight: 800KG

Detailed parameters of barrier type 3-ton flatbed trailer set:

1. The carrying capacity of this vehicle is 3 tons. The cargo area is 2.6 meters long, 1.25 meters wide, and about 0.6 meters high. The main structure is made of 8 # steel. The main beam is a welded composite beam. The plate surface is paved with 4mm checkered plates. The front and rear of the vehicle body are equipped with 600 mm high plug-in guardrails, and the left and right sides are equipped with 900 mm high plug-in guardrails.

2. The tires are four 500-8 solid tires with a single wheel bearing capacity of 1.2 tons, two axle type, and a speed of 15KM/h.

3. The turntable is a 3-ton standard 180 degree rotation, equipped with a 3-ton standard traction frame, which can be adjusted and fixed up and down. Different vehicles can be simply adjusted for traction. The rear of the vehicle is equipped with a connecting device to enable continuous traction.

4. Rigid connecting frame, with a minimum turning radius of 180 degrees.

5. Color: Isuzu blue, with yellow warning stripes sprayed around.

6. Each set is equipped with a special connector and a pin.
