Brand: Nangong, Model: PT15A-28W63L-8S, Load Capacity: 15 tons, Tire Model: 650-10, Weight: 3960KG, Color: Black;

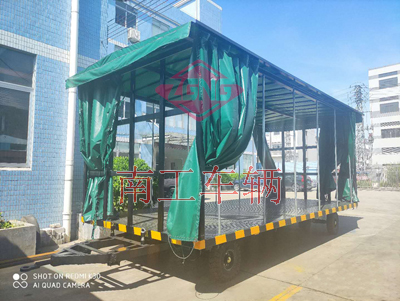

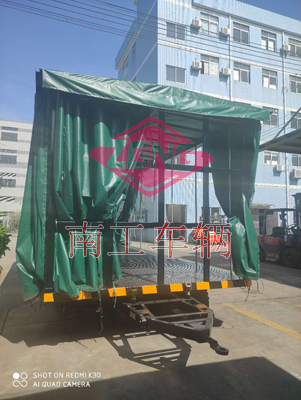

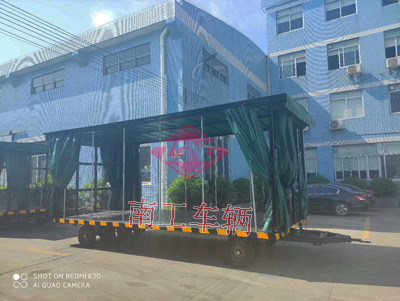

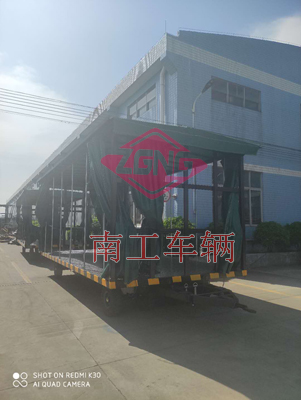

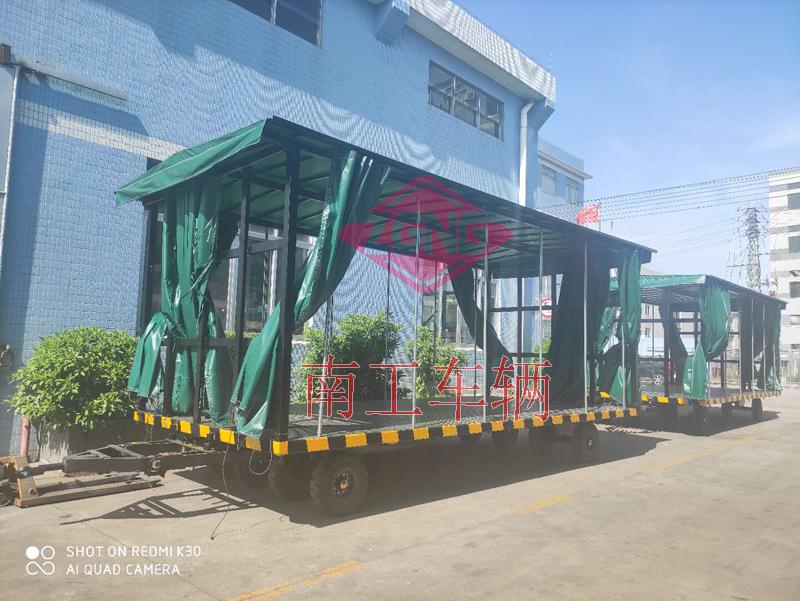

Details of 15-ton canopy double-traction flatbed trailer:

1. The flatbed truck has a load capacity of 15 tons, with a cargo platform size of 6.3*2.8 meters. The main structure is made of 10-gauge steel (three main beams are made of 20-gauge steel), and the surface is covered with 4mm checkered plates;

2. The tires are 8 solid tires of 650-10, with a single load capacity of 2.6 tons and a speed of 15KM/H;

3. The slewing crane is of the 15-ton standard type, with one set at the front and one at the rear. (The slewing disc is designed to retract 150MM towards the inside of the multi-directional body, aiming to minimize the cargo span.);

4. Dual-head traction, with one set of traction frames at the front and another at the rear. When one end is being pulled, the other end serves as a traveling wheel. The traction device is a compression spring buffering traction mechanism, which provides buffering during startup or sudden braking. It can be adjusted and fixed vertically (using two leaf springs for vertical adjustment);

5. The vehicle body is equipped with four thick steel pipe legs (100mm above the ground);

6. Suspended frame with automatic wheel axle swing adjustment (ensures the board surface is level and the tires are evenly stressed on uneven ground);

7. The turning radius of the return rack is 180 degrees, allowing for turning in place with a 180-degree turning radius;

8. Unilaterally weld 5 code hooks, with each vehicle equipped with a connector and a pin;

9. Color of the car body: Black.

15-ton canopy double-traction flatbed trailer, canopy tool turnover trailer, Nanjing Industrial Vehicles specializes in long-term, large-scale non-standard customization. It features stable quality, exquisite appearance, safety, durability, and a long service life.

Application: Primarily used for the internal turnover transportation of large and small goods, loose parts, etc. It can be towed by forklifts, tractors, trucks, and other vehicles, with strong carrying capacity, simplicity, and convenience. The trailer is fully enclosed with a waterproof cloth, which can be opened on both sides. When closed, it provides protection against rain and dust.
